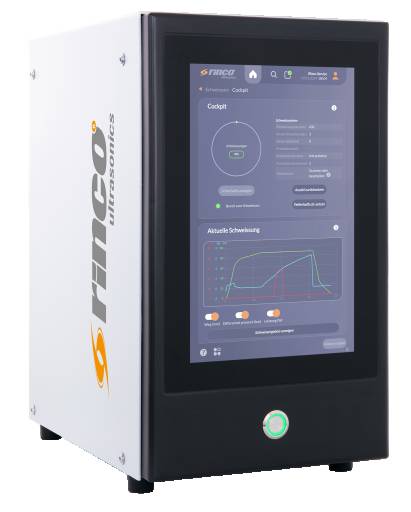

ADG2 Ultrasonic Generators
The ultrasonic generators of the ADG2 series stand for precise and dependable ultrasonic machining with high process reliability. With integrated functions for process monitoring and quality control, they ensure reproducible results and stable processes, both in manual applications and in automated manufacturing environments.
The ADG2 generators are compatible with the Standard2-3000 and Standard2-745 ultrasonic welding machines and are also suitable for operating actuators. Thanks to their flexible application options, they are also designed for integration into automation lines and special-purpose machines.
The ADG2 combines innovative technology with reliable performance – for ultrasound processes that impress today and grow with your requirements tomorrow.
Discover the new ADG2. Designed for efficient processes. Built for your success.
In this video, we explain the features and advantages of the ADG2.
Advantages of ADG2 ultrasonic generator
Integration into special purpose machines
The ADG2 ultrasonic generator is optimal for integration into special-purpose machines. Communication with the PLC takes place via digital I/O by default. A PROFINET interface is also available as an option for even more flexible integration into automated systems.
Quality assurance
Weld data can be saved to the internal hard drive, the company’s internal network or an external storage medium. This provides reliable support for process documentation, quality control and traceability.
7 welding modes to choose from
Thanks to the welding modes, you can find the right setting for every application, meaning that perfect welding is guaranteed. The following welding modes can be selected on the ADG2 series:
- Welding time
- Welding energy
- Welding time AND/OR welding energy
- Welding travel (abs. or diff.)
- Contact cut-off
User administration
You can assign user authorisations using a menu-based system: Users are granted targeted access to individual menu items, allowing access to specific functions or areas of the user interface to be controlled individually, which increases process reliability.
Part counters – Increase process reliability
A part counter and a reject counter are integrated into all ultrasonic generators from the ADG2 series.
Maximum reproducibility
Store the welding parameters for your applications in the internal database and retrieve them at any time. This ensures that welding results can be reproduced at any time.
High process reliability
RINCO generators operate very reliably and have a long service life.
Quality control
The ADG2 ultrasonic generators can be used to set a wide range of limits that issue a warning or stop the machine.
Trigger – Ultrasonic trigger point
The welding operation can be initiated using a trigger. You can choose from the following triggers:
- Time
- Travel
- Contact pressure
- external signal
- Travel and pressure
Save time with no maintenance
Ultrasonic welding generators from the ADG2 series are maintenance-free and therefore make your company even more productive.
Multilingual – Operate the generator in your language
The software for the ADG2 series ultrasonic generators is available in many different languages:
- German
- English
- French
- Italian
- Spanish
Softstart and softstop function
To gently augment and attenuate the oscillations of complex horns to protect these from damage.
Technical specifications
| ADG2 Ultrasonic Generators | ADG | SDG | |
|---|---|---|---|
 |  |  | |
| Operating frequency | 20 kHz, 30 kHz, 35 kHz or 70 kHz | 20 kHz, 30 kHz, 35 kHz or 70 kHz | 20 kHz, 30 kHz, 35 kHz, 40 kHz or 70 kHz |
| Power output | 100 W, 400 W, 600 W, 900 W, 1000 W, 1500 W, 2000 W, or 3000 W | 100 W, 400 W, 600 W, 900 W, 1000 W, 1500 W, 2000 W, or 3000 W | 100 W, 200 W, 400 W, 500 W, 750 W, 800 W, 900 W, 1000 W, 1500 W or 2000 W |
| Operating modes |
|
|
|
| Communication and interfaces |
|
|
|
| Power supplies | 230 V ± 10 %, 50 / 60 Hz | 230 V ± 10 %, 50 / 60 Hz | 230 V ± 10 %, 50 / 60 Hz |
| Amplitude | Adjustable 40 - 100 %, changeable in 1 % increments | Adjustable 40 - 100 %, changeable in 1 % increments | Adjustable 15 - 100 %, changeable in 1 % increments |
| Weight | 16 kg | 16 kg | 16 kg |
